KBAT9261

This ARM926-based stand-alone computer is an excellent choice for thin-client, low-cost, low-power consumption computing.

The small footprint and low power requirements (supports Power-over-Ethernet, PoE) make the KBAT9261 ideally suited for facility applications and remote computing.

While the test system is shown running a GNOME environment, the KBAT9261 is targeted at light-weight environments.

Applications can be developed natively on the board: removing the need for a cross-compiler host environment. Or based on preference, the AT91SAM9261 is also supported by the open-source (free) GNU cross-compiler tool chain for software development from a host system. In either case, there's no need to purchase additional tools for applications software development.

Sample applications include kiosks, facility maintenance/controller, games, embedded compiler/debugger, streaming audio client, and data concentrator.

Expansion:
8-bit, addressable, parallel I/O port (internal)
USB device port pins (internal)

Current state: Offered to developers.

NOTE: PoE connections supplied on pins 4/5 and 7/8.

Technical Specs

  • RoHS Compliant
  • Atmel AT91SAM9261 processor
  • 200+ MHz, ARM926EJ-S with Java acceleration and DSP instruction extensions
  • Independent 16KB instruction and 16KB data caches
  • 128 MB SDRAM
  • 8 MB boot/kernel Flash
  • Compact Flash interface
  • 10/100 Ethernet
  • 2 x USB 2.0 full speed host ports
  • VGA display port
  • 2 x PS/2 for keyboard and mouse
  • Audio (headphone out, mic in, line out)
  • Integrated 802.3af (PoE) module (optional)
  • On-chip Real-time clock (RTC) with battery back-up

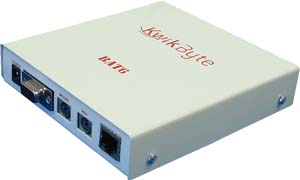

  • 5.1" x 4.7" x 1" case (optional)

Development kits

Boards are currently available from our on-line store.

The full development kit has not yet been released.
